WDH-31-500 Motor Protection Controller

WDH-31-500 Motor Protection Controller

Introduction

WDH-31-500 motor protection controller can provide up to 12 programmable switch inputs (dry {wet contact optional) 7 programmable relay outputs, all input and output have programmable functions, which can meet different protection control requirements on site. All protection functions can be set to check the alarm value and action value at the same time, and can be switched on and off separately. The protection parameters can be set by professionals according to the actual working conditions of the motor on site, so that power loss will not be lost.

WDH-31-500 Motor Protection Controller Feature
Feature
16 protection functions
Chinese man-machine interface
Support anti shake power
Convenient parameter setting
Function
Technical Specification
Model Selection
Dimension

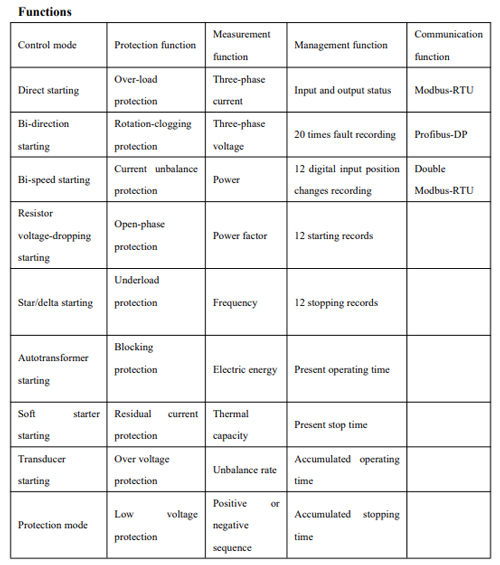

WDH-31-500 Motor Protection Controller Function

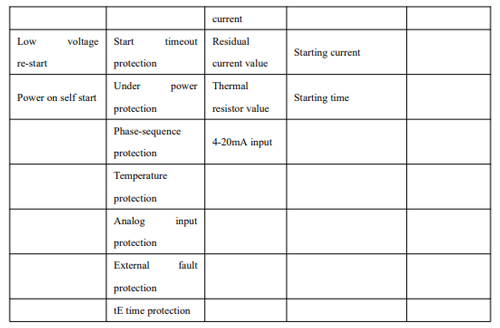

WDH-31-500 Motor Protection Controller Function 2

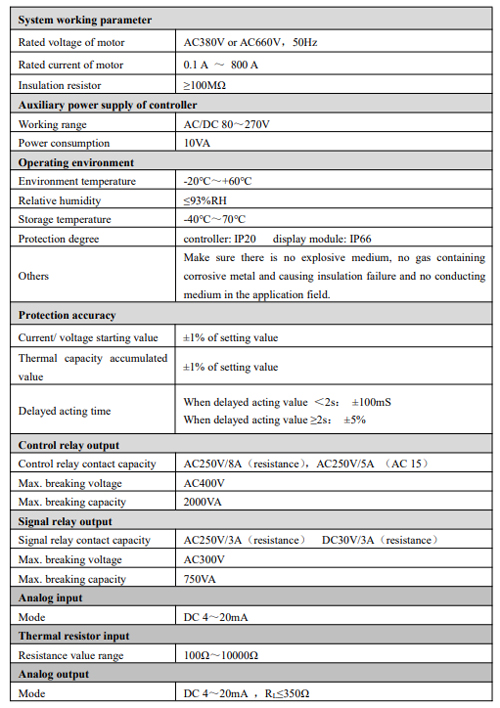

WDH-31-500 Motor Protection Controller Technical Specification

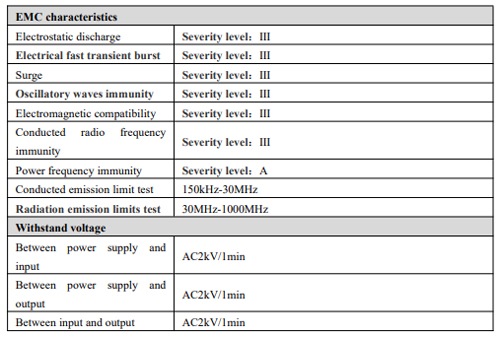

WDH-31-500 Motor Protection Controller Technical Specification 2

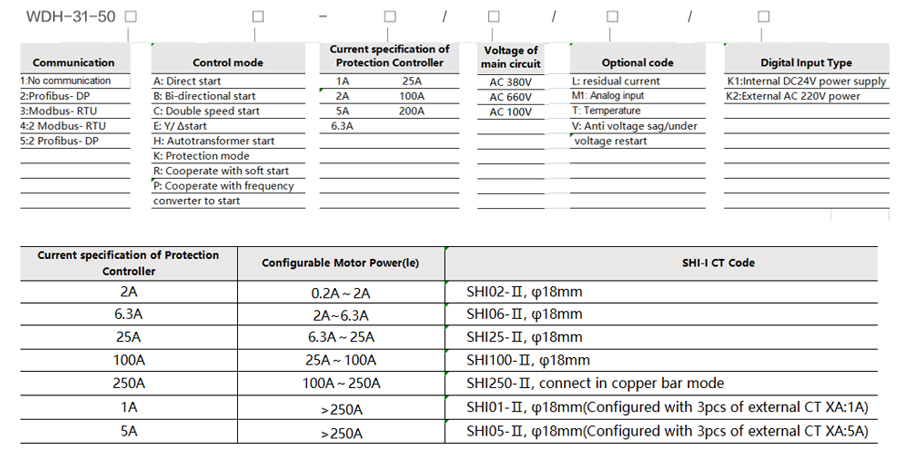

WDH-31-500 Motor Protection Controller Model Selection

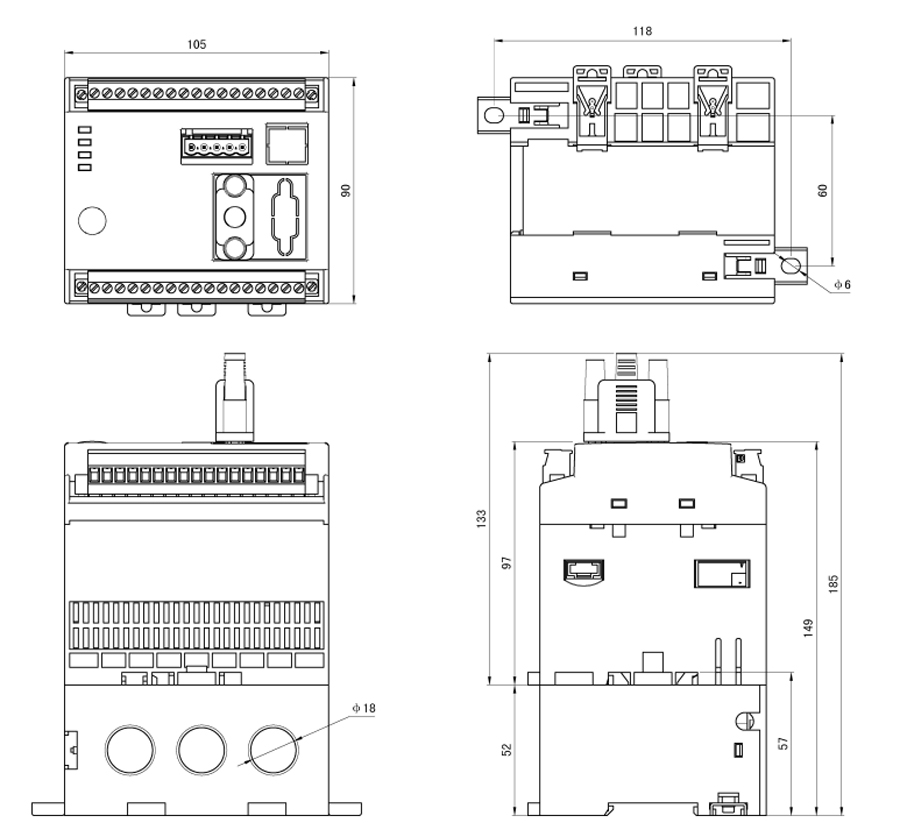

WDH-31-500 Motor Protection Controller Dimension

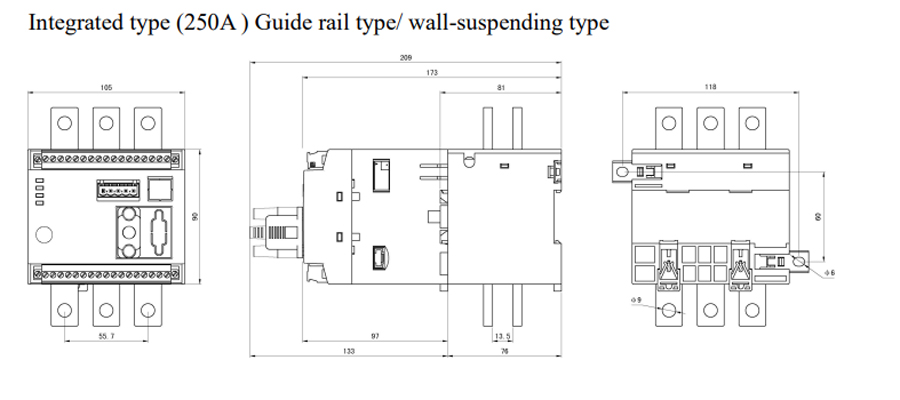

WDH-31-500 Motor Protection Controller Dimension 2

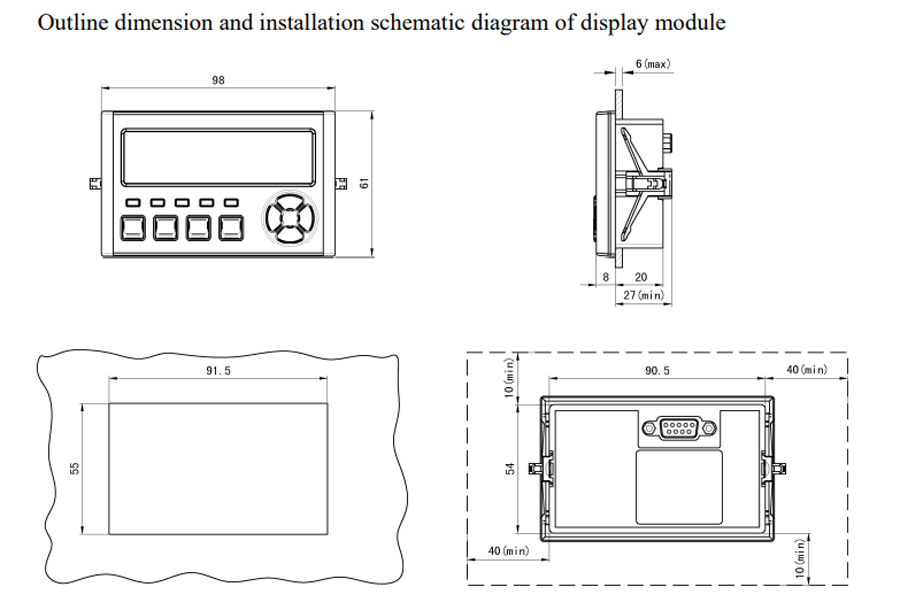

WDH-31-500 Motor Protection Controller Dimension 3
