Isolation Switch

Isolation Switch

Measurement and Control Power Quality Improvement Equipment Electrical Cabinet Electrical Safety Monitoring System Energy Management Software Battery Energy Storage System

An Isolation Switch is a crucial component in electrical systems for safely isolating circuits and equipment during maintenance or repair work. This switch provides a physical barrier to disconnect power from the load, ensuring that personnel can work on the equipment without the risk of electric shock. Isolation switches are often used in conjunction with circuit breakers or fuses to provide an additional layer of protection. With their robust construction and reliable operation, isolation switches play a vital role in maintaining electrical safety and preventing accidents in various industrial and commercial settings.

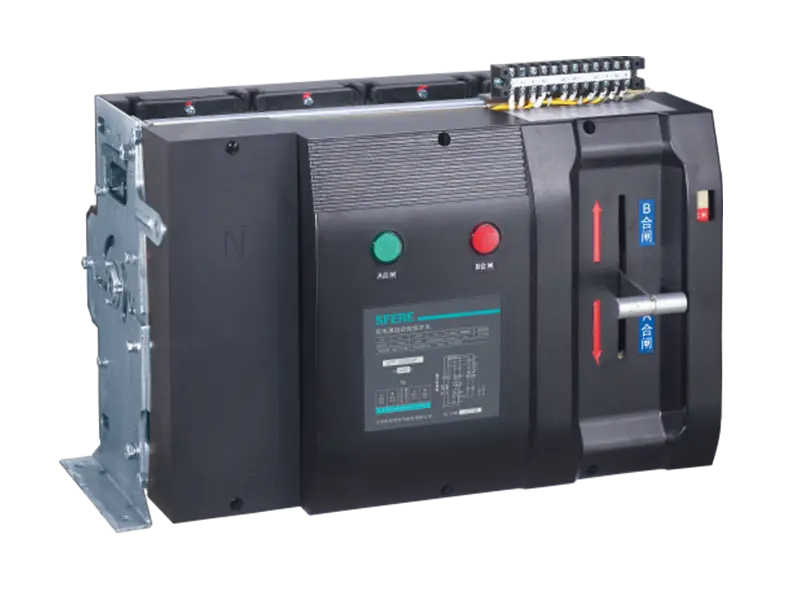

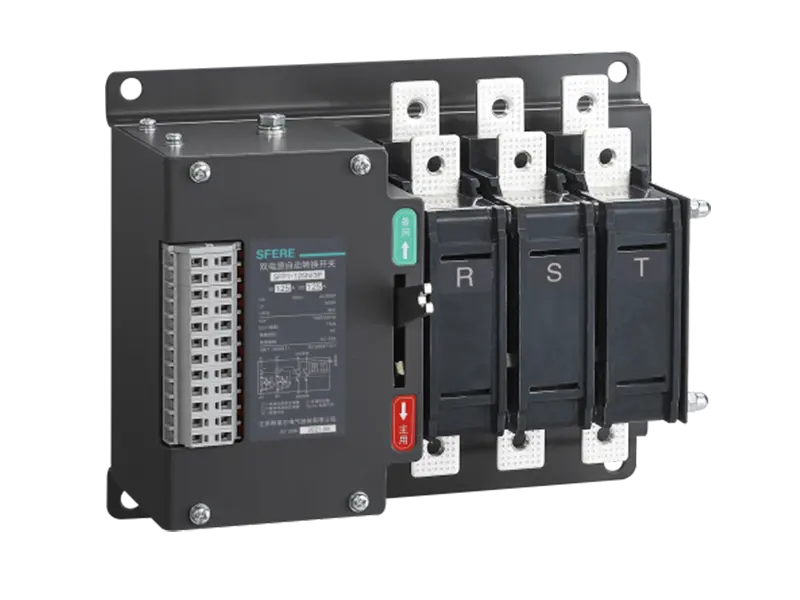

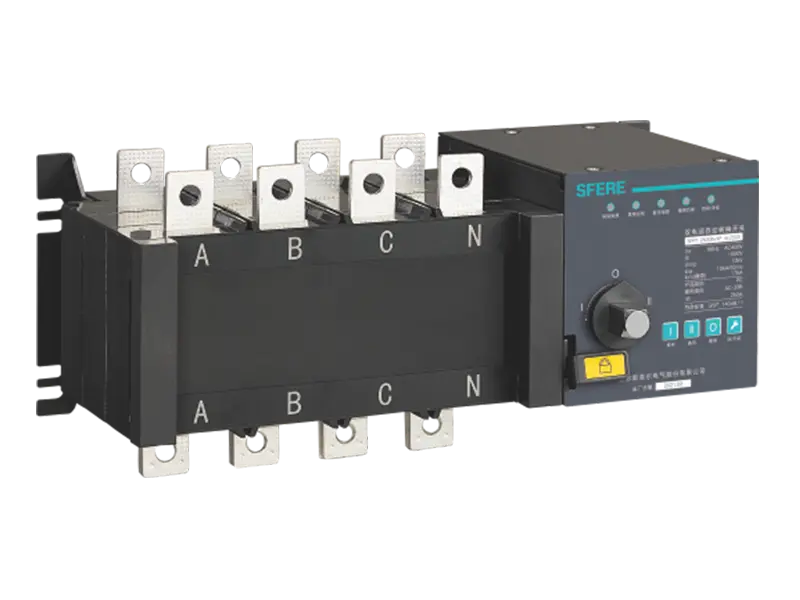

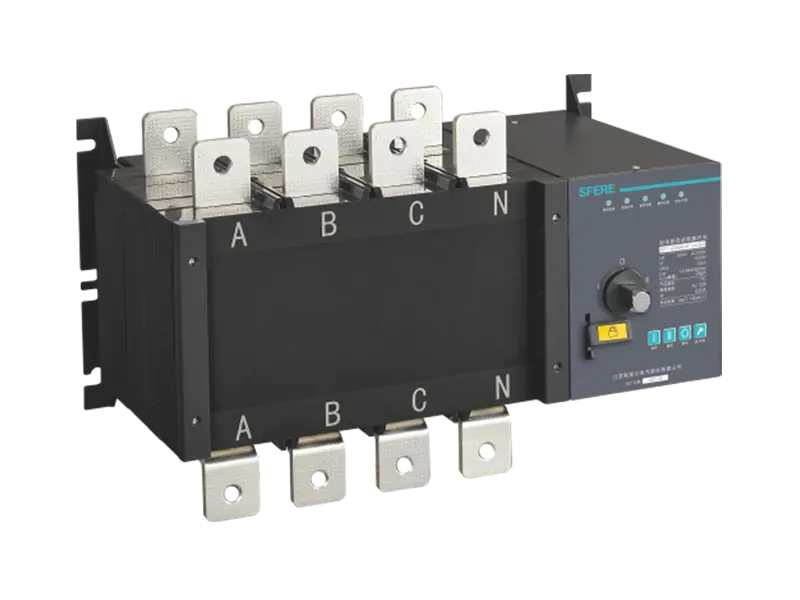

Types of Isolation Switch

Isolator Switch VS Circuit Breaker

Isolator switches and circuit breakers serve distinct functions in electrical systems, although they are both used to control the flow of electrical current. Here's a comparison of isolator switches and circuit breakers:


1. Function:

  - Isolator Switch: An isolator switch is primarily used to physically isolate electrical circuits or equipment from their power source. It is intended for operation under normal conditions and is not designed to interrupt current under fault conditions.

  - Circuit Breaker: A circuit breaker is designed to protect electrical circuits and equipment by automatically interrupting the flow of current in the event of overloads, short circuits, or other faults. It serves both as a switch for normal operation and as a protective device to prevent damage to the system.


2. Operating Mechanism:

  - Isolator Switch: Isolator switches typically have a manual operating mechanism and require manual intervention to open or close the contacts. They do not have trip mechanisms and do not provide protection against overcurrent or faults.

  - Circuit Breaker: Circuit breakers may have manual or automatic operating mechanisms. In addition to manual operation, they feature trip units that sense abnormal current conditions and automatically trip the breaker to interrupt the flow of current when necessary.


3. Protection:

  - Isolator Switch: Isolator switches do not provide protection against overcurrent or faults. Their primary purpose is to provide a means of isolation for safe maintenance or repair work.

  - Circuit Breaker: Circuit breakers provide protection against overloads, short circuits, and other faults by automatically opening the circuit when abnormal conditions are detected. They help prevent damage to equipment and reduce the risk of electrical hazards.


In summary, isolator switches are used for isolation purposes only and do not provide protection against faults, while circuit breakers serve both as switches and protective devices, automatically interrupting current to protect electrical systems from damage and ensure safety.


How to Use Isolator Switch

Using an isolator switch involves following specific procedures to safely isolate electrical circuits or equipment from their power source. Here are general steps on how to use an isolator switch:


1. Identify the Circuit or Equipment: Determine which electrical circuit or equipment needs to be isolated. Make sure you know the specific isolator switch that corresponds to the circuit or equipment.


2. Prepare for Isolation: Before operating the isolator switch, ensure that all connected equipment is powered off and any necessary safety precautions, such as wearing appropriate personal protective equipment (PPE), are taken.


3. Locate the Isolator Switch: Locate the isolator switch associated with the circuit or equipment you intend to isolate. Isolator switches are typically installed in visible and accessible locations.


4. Verify Isolation: Confirm that the isolator switch is in the "OFF" position by visually inspecting the switch position or indicator markings. Ensure that the switch contacts are fully open to prevent the flow of electrical current.


5. Operate the Isolator Switch: Using the switch handle or operating mechanism, move the isolator switch to the "OFF" position. This action physically opens the circuit, disconnecting the electrical load from the power source.


6. Lockout/Tagout (LOTO): If required by safety procedures, apply a lockout/tagout device to the isolator switch to prevent unauthorized operation while maintenance or repair work is performed. This ensures that the circuit remains isolated and de-energized.


7. Perform Maintenance or Repair: With the circuit or equipment safely isolated, you can proceed with maintenance, repair, or servicing tasks as needed.


8. Restore Power: Once maintenance work is completed, reverse the isolation procedure by moving the isolator switch to the "ON" position. This restores power to the circuit or equipment.


9. Verify Operation: After restoring power, verify that the circuit or equipment functions correctly and that there are no issues before resuming normal operation.


It's essential to follow established safety procedures and guidelines when using isolator switches to prevent electrical hazards and ensure the safety of personnel and equipment. Always refer to specific equipment manuals and safety protocols for detailed instructions on isolator switch operation.
