Harmonic distortion is a growing challenge in modern electrical systems, caused by non-linear loads such as variable frequency drives, UPS systems, LED lighting, and renewable energy inverters. Left unchecked, it can lead to equipment failure, increased energy costs, and safety risks. An Active Harmonic Filter (APF) offers an advanced, dynamic solution that actively cleans power systems in real time.
As one of the most effective APF filter technologies available today, these systems not only remove harmonics but also provide reactive power compensation. This guide explores how APF systems work, their real-world applications, and what to consider when choosing the right solution from reputable active harmonic filter manufacturers.
What is Harmonic Distortion and Why It Harms Your Electrical System?

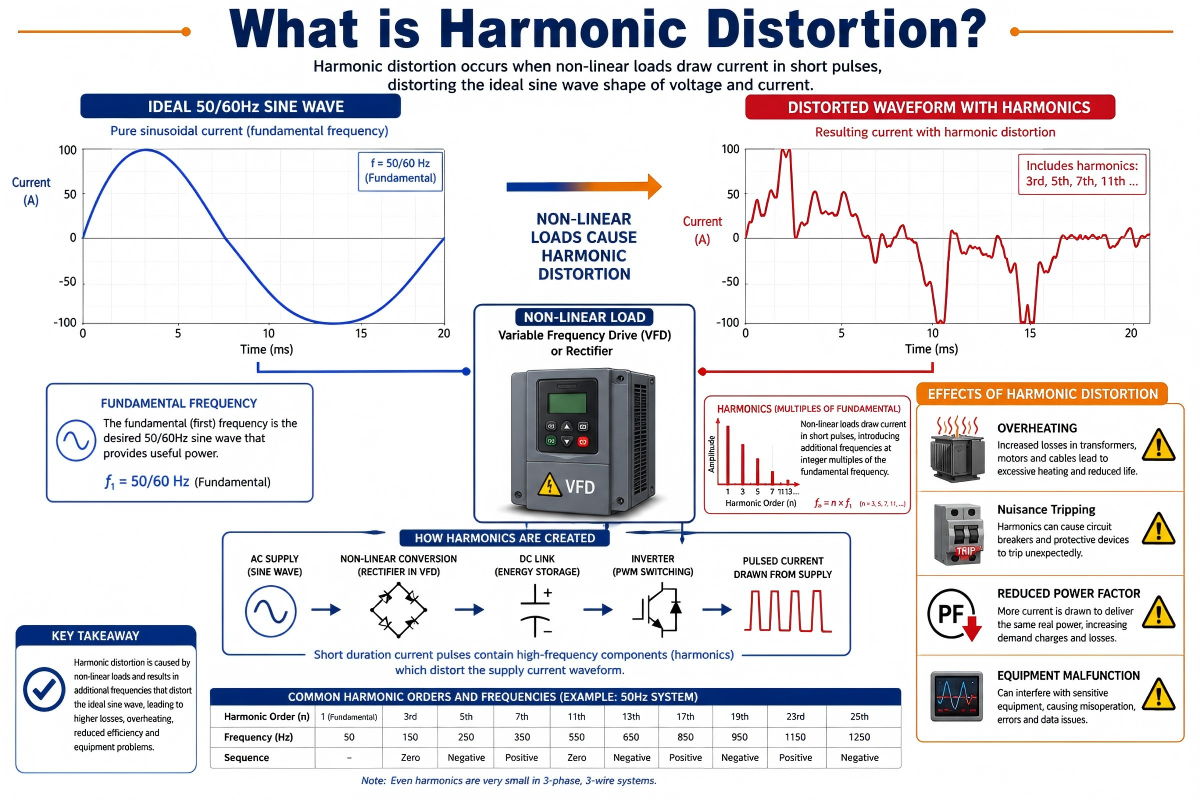

Harmonic distortion occurs when non-linear loads draw current in short pulses rather than smooth sine waves, introducing harmonic frequencies that are multiples of the fundamental 50/60Hz frequency. Common symptoms include overheating transformers, nuisance tripping of circuit breakers, distorted voltage waveforms, and reduced power factor.
In industrial and commercial settings, harmonic distortion can cause up to 20-30% higher energy losses and significantly shorten the lifespan of sensitive equipment. It also interferes with communication systems and can lead to penalties from utility companies for poor power quality. Understanding these risks highlights the importance of investing in a modern APF system to maintain clean, efficient power.
How Active Harmonic Filters (APF) Solve Harmonic Distortion Problems
Active Harmonic Filters (APF) work by continuously monitoring the load current, identifying harmonic components, and injecting an equal but opposite harmonic current to cancel them out. Unlike passive filters, which are tuned to specific frequencies and can cause resonance issues, an APF filter adapts dynamically to changing load conditions.
The SFR-APF series, for example, is a cutting-edge power electronic device designed for dynamic harmonic filtering and reactive power compensation. This advanced automatic harmonic filter effectively addresses harmonics of varying sizes and frequencies while providing real-time dynamic reactive power management. By combining harmonic filtering and reactive power compensation seamlessly, the APF system overcomes the limitations of traditional methods and delivers superior performance and efficiency.
Most high-quality APF filters can reduce total harmonic distortion (THDi) to below 5%, meeting stringent international standards such as IEEE 519. This real-time correction improves overall system efficiency, reduces heat generation, and enhances equipment reliability.
Key Applications of Active Harmonic Filters in Industrial and Commercial Settings
Active Harmonic Filter (APF) systems are widely deployed across industries where non-linear loads are prevalent. In manufacturing plants, they protect variable speed drives, welding machines, and robotic systems from the harmful effects of harmonics. The metallurgy, petroleum, chemical, and mining sectors particularly benefit from APF filters, where heavy machinery creates significant harmonic pollution.
In commercial buildings, data centers, and hospitals, APF systems ensure stable power for sensitive IT equipment, medical devices, and HVAC systems. Ports and large-scale renewable energy installations also rely on these solutions to maintain grid compliance and operational stability.
By installing an APF filter at the main distribution board or close to major harmonic sources, facilities can achieve comprehensive protection and improved power quality across the entire system.
Important Considerations When Selecting an Active Harmonic Filter (APF)
Choosing the right APF system requires careful evaluation of several technical and operational factors. First, assess the harmonic spectrum of your facility to determine the required compensation capacity, typically measured in amperes (A). Consider the number of harmonic orders the filter can address and whether it supports reactive power compensation.
Key selection criteria include:
Compensation speed and response time
Modular design for scalability and easy maintenance
Communication capabilities for integration with building management systems
Thermal management and efficiency ratings
Here is a helpful comparison between different harmonic mitigation solutions:
| Solution | Harmonic Reduction | Reactive Compensation | Adaptability | Maintenance | Best For |
|---|
| Passive Filters | Limited | No | Low | Low | Fixed loads |
| Active Harmonic Filter (APF) | Up to 95%+ | Yes | High | Moderate | Dynamic, complex systems |
| Hybrid Systems | High | Yes | Medium | Moderate | Large facilities |
Reputable active harmonic filter manufacturers provide detailed technical support to help match the APF filter specifications to your exact requirements.
Why Elecnova Stands Out Among Active Harmonic Filter Manufacturers

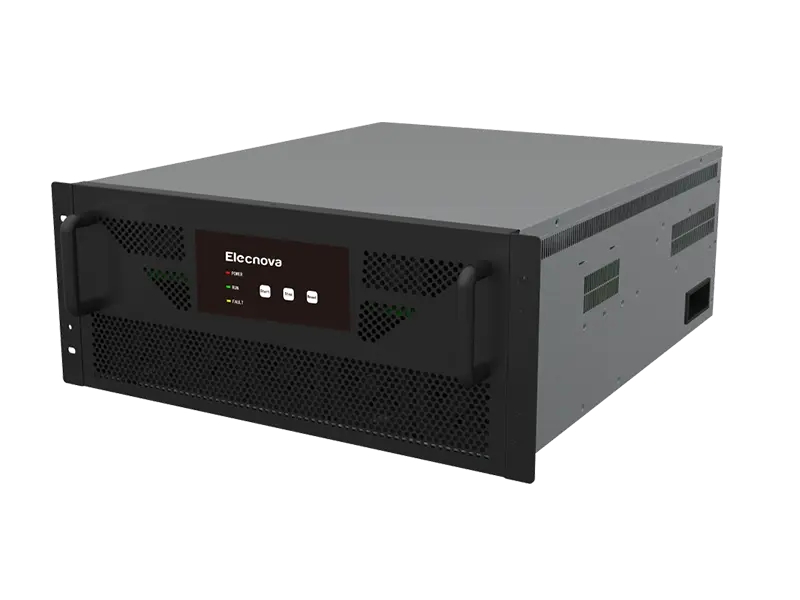

Elecnova has established itself as a leading name among active harmonic filter manufacturers by delivering reliable, high-performance power quality solutions. Their SFR-APF series Active Harmonic Filter Module represents the latest advancement in harmonic mitigation technology, offering dynamic filtering and reactive power compensation in one compact system.
With a strong focus on innovation and quality, Elecnova’s APF systems are trusted across power, metallurgy, petroleum, ports, chemicals, and industrial sectors. Their solutions stand out for superior performance, ease of integration, and excellent long-term reliability.
Discover Power Quality Solutions | Explore Full Product Catalog
Conclusion
Active Harmonic Filters (APF) have become essential for maintaining clean, efficient, and reliable electrical systems in today’s industrial and commercial environments. By effectively eliminating harmonic distortion, an APF filter not only protects valuable equipment but also reduces energy costs and improves overall system performance.
Whether you need a complete APF system for a large manufacturing facility or targeted harmonic correction, selecting the right solution from experienced active harmonic filter manufacturers is crucial. Elecnova continues to lead with innovative technology and customer-focused support, helping businesses achieve better power quality and operational excellence.
Ready to solve your harmonic challenges? Contact the Elecnova team today to discuss the best APF filter solution for your facility.
FAQ
1. What is an Active Harmonic Filter (APF)?
An Active Harmonic Filter (APF) is a power electronic device that actively detects and cancels harmonic currents in real time, providing clean power and reactive power compensation.
2. How does an APF filter differ from passive filters?
Unlike passive filters that are fixed to specific frequencies, an APF filter dynamically adapts to changing loads and can simultaneously handle multiple harmonic orders while providing reactive compensation.
3. What industries benefit most from APF systems?
Industries with heavy non-linear loads such as manufacturing, data centers, metallurgy, chemicals, ports, and renewable energy installations benefit significantly from APF systems.
4. How much can an Active Harmonic Filter reduce harmonic distortion?
High-quality APF filters can typically reduce Total Harmonic Distortion (THDi) to below 5%, meeting IEEE 519 standards.
5. What should I consider when selecting an APF from active harmonic filter manufacturers?
Key factors include compensation capacity, response time, scalability, communication options, and the manufacturer’s technical support and industry experience.
6. Why choose Elecnova as your active harmonic filter manufacturer?
Elecnova offers advanced SFR-APF series solutions with excellent performance, reliability, and comprehensive technical support for demanding industrial and commercial applications.
