Static Reactive Power Generation Cabinet

Static Reactive Power Generation Cabinet

Introduction

SFR-SVG series static reactive power generation cabinet takes digital signal processor (DSP) as the core, parallels the self changing bridge circuit on the power grid through reactors, uses real-time data acquisition technology and dynamic tracking technology to detect the voltage and current information of the power grid, extracts the reactive component of the load current after internal DSP calculation, and then drives the PWM signal to IGBT, According to the reactive current, the three-level topology circuit is controlled to generate reactive current.

Model Description
Technical Specification
Model Selection
Typical Wiring

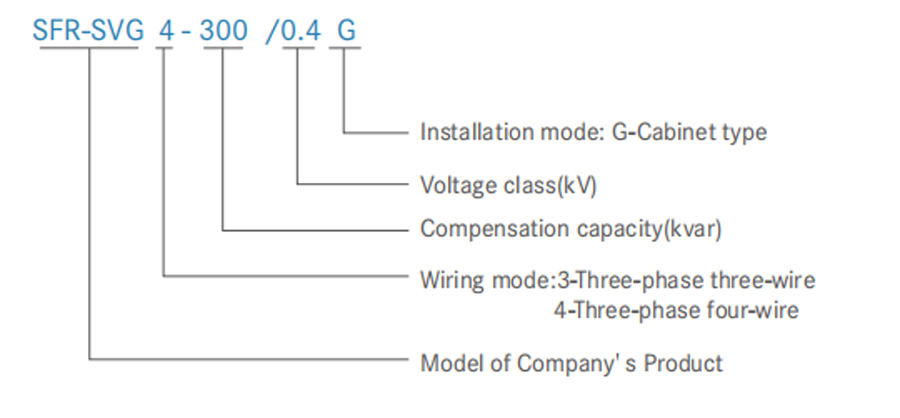

Static Reactive Power Generation Cabinet Model Description

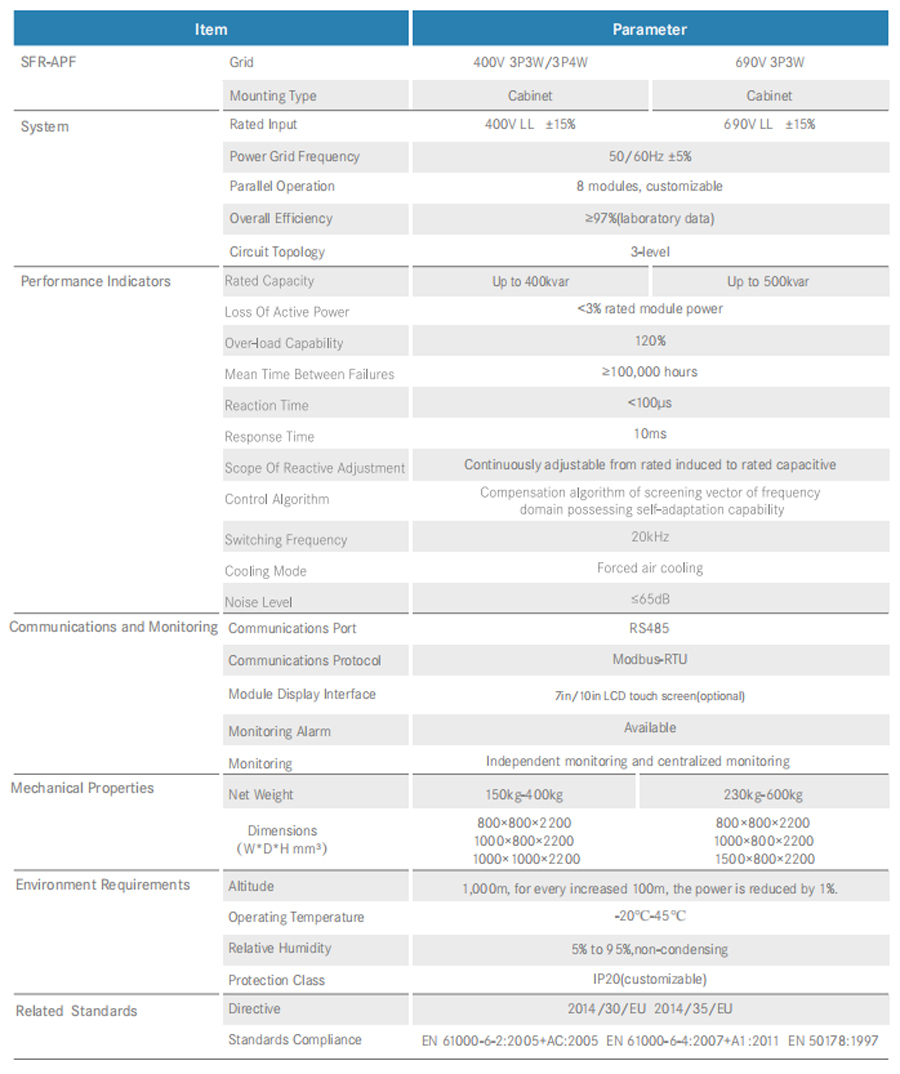

Static Reactive Power Generation Cabinet Model Technical Specification

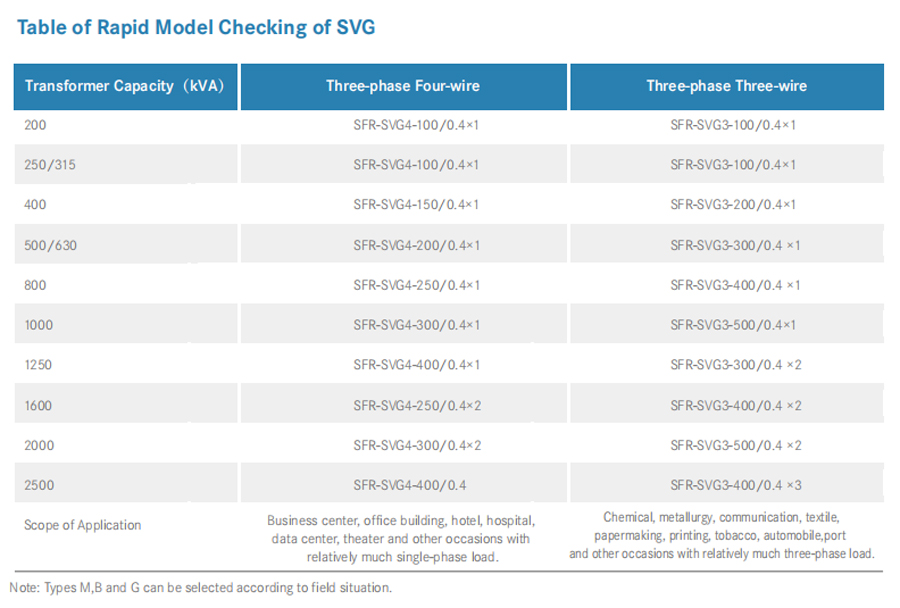

Static Reactive Power Generation Cabinet Model Selection

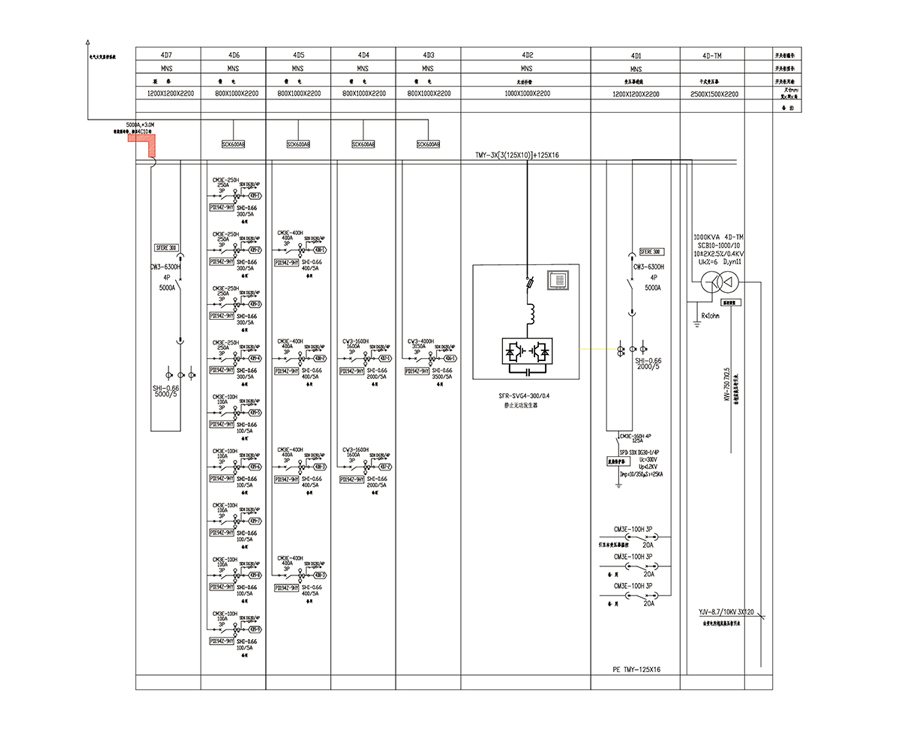

Static Reactive Power Generation Cabinet Typical Wiring
