Introduction

The Elecnova700 monitoring unit can realize the real-time measurement of power parameters of low-voltage distribution system, power metering, power quality analysis, status monitoring, limit exceeding alarm and other functions. The Sfere700 includes a display module Sfere700-D1, a communication module Sfere700-C1, a power module Sfere700-P, a maximum of 32 monitoring modules Sfere700-M, and supporting current transformers. Up to 32 three-phase circuit power parameters can be measured. Equipped with a large color LCD and touch mode buttons, it is easy to use and compact in size.

Electrical Measurement Module Feature
Feature
Multi-circuit measurement
Cost-saving
Compact design
Colorful LCD centralized display
Easy installation
Applicable to drawer-type switch cabinet
Technical Specification
Model Selection
Dimension
Typical Wiring

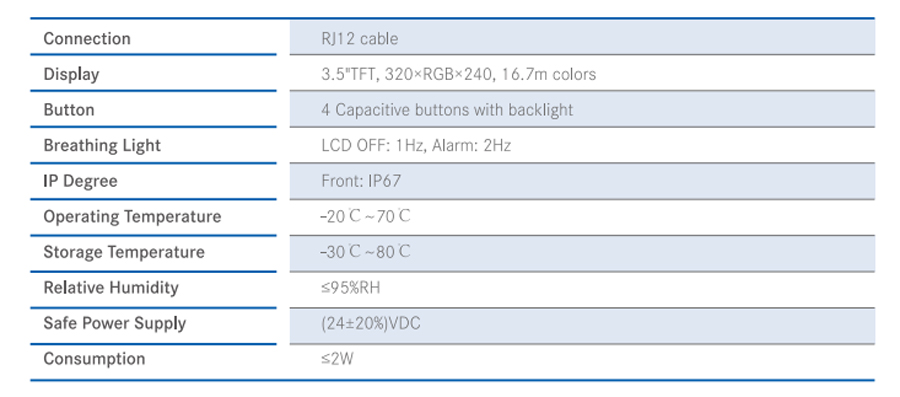

Sfere700-D1 Display Module

Electrical Measurement Module Technical Specification

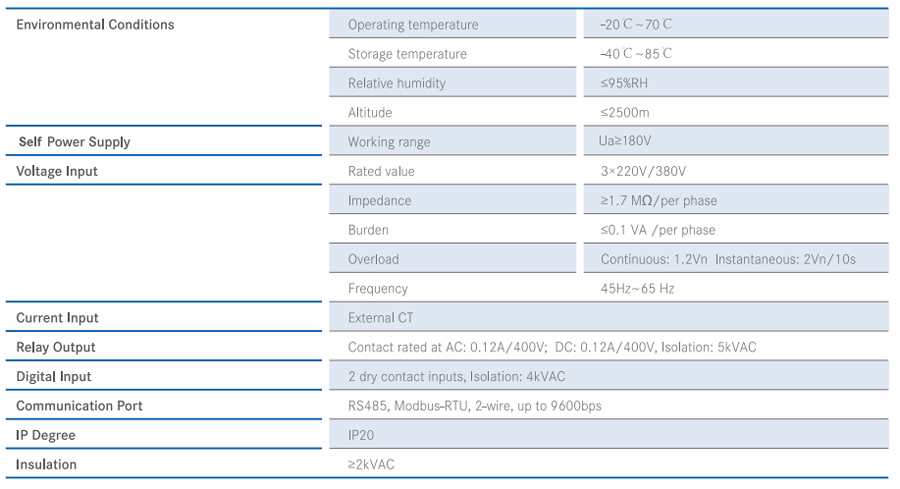

Sfere700-M Measuring Module

Electrical Measurement Module Technical Specification 2

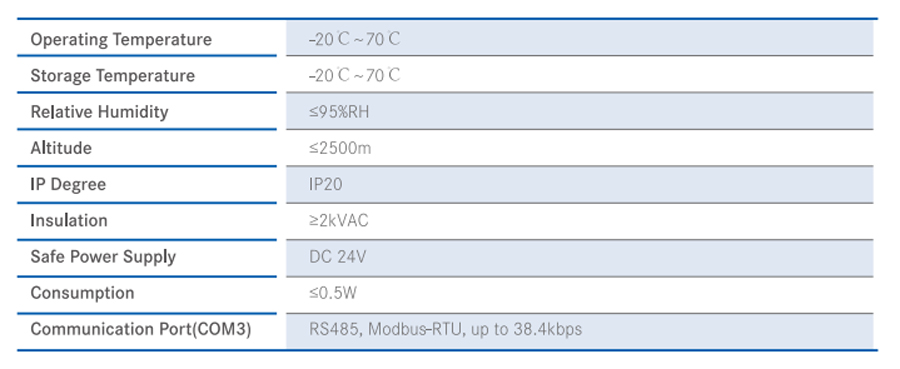

Sfere700-C1 Communication Module

Electrical Measurement Module Technical Specification 3

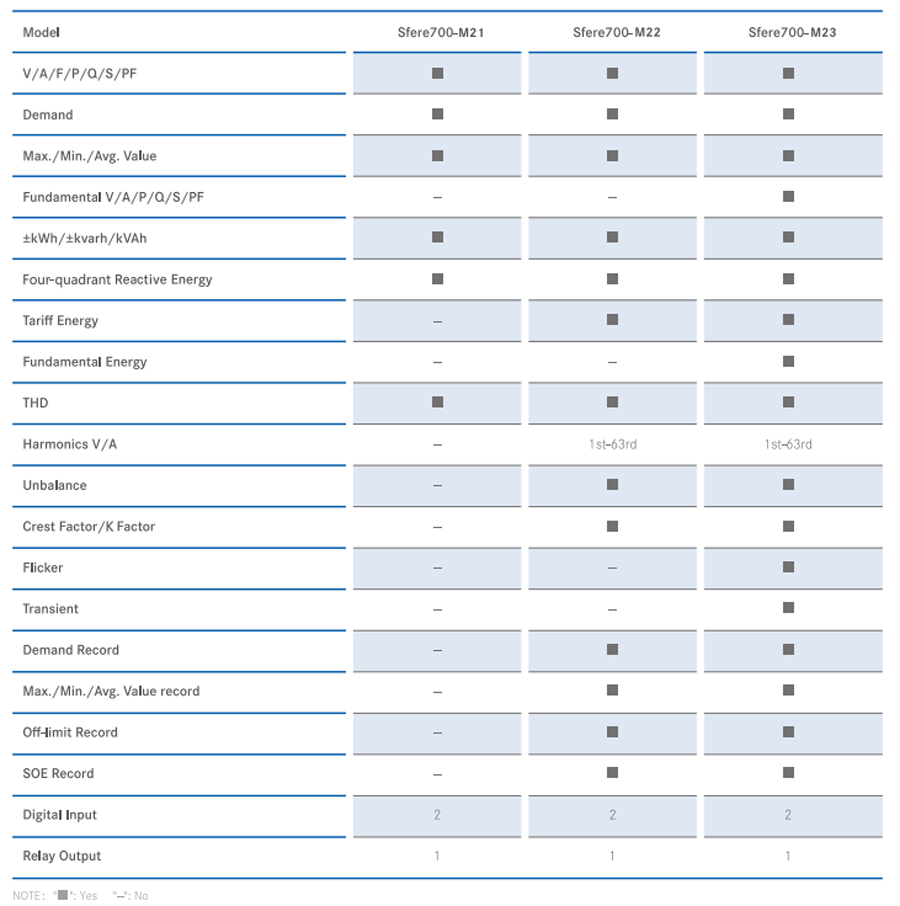

Electrical Measurement Module Model Selection

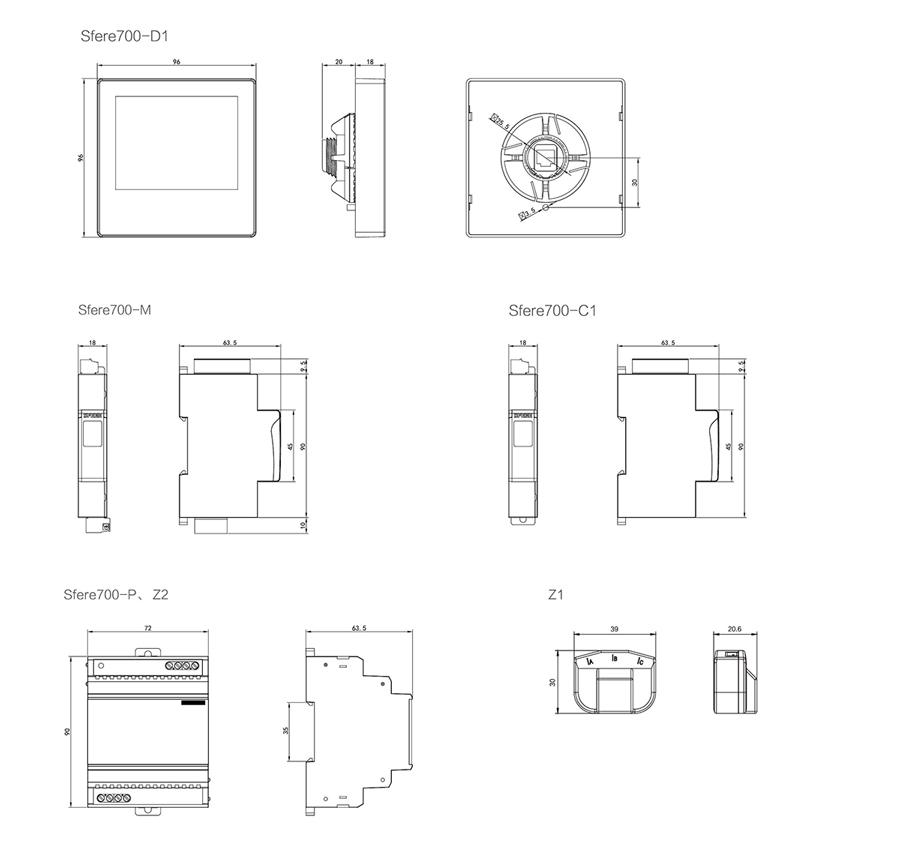

Electrical Measurement Module Dimension

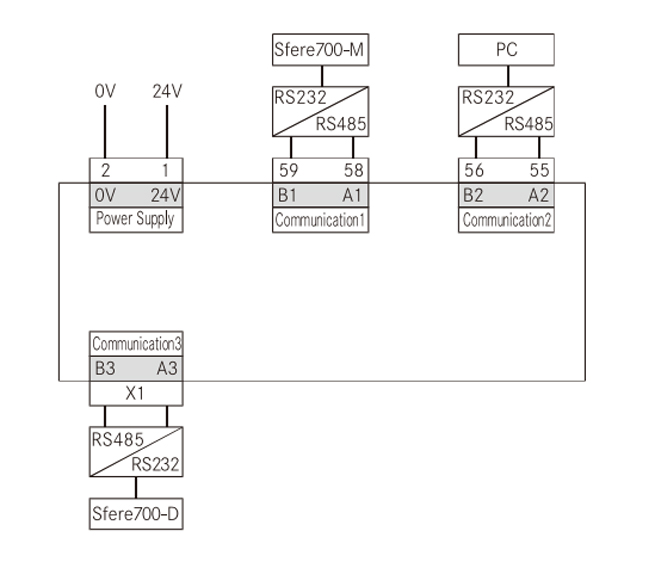

Sfere700-C1

Electrical Measurement Module Typical Wiring

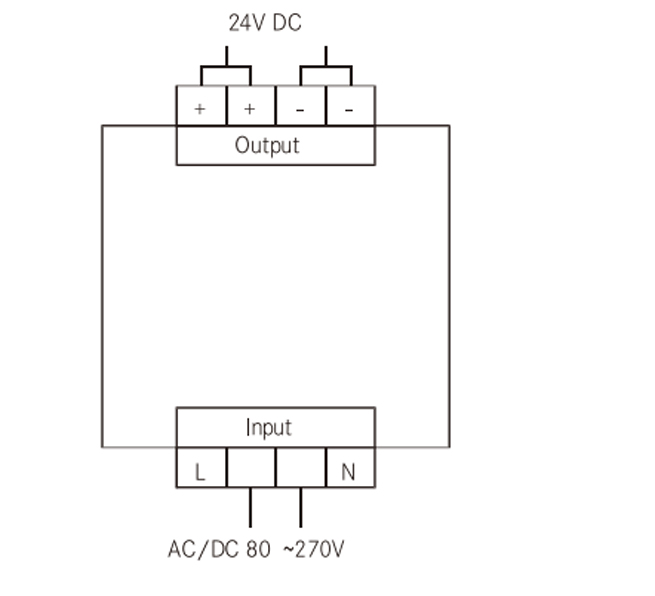

Sfere700-P

Electrical Measurement Module Typical Wiring 2

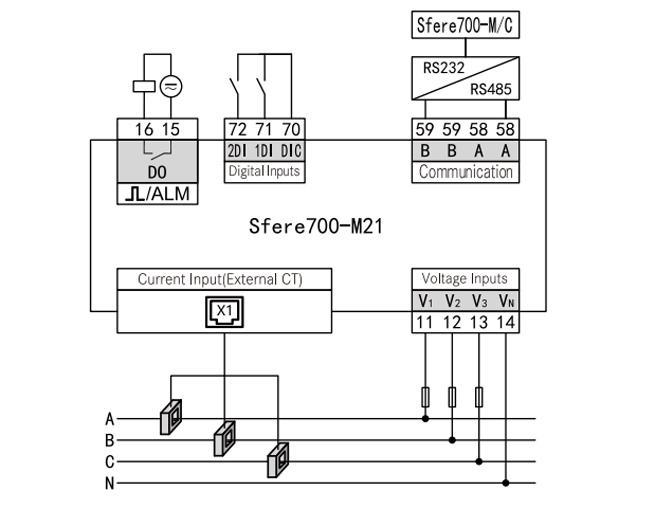

Sfere700-M1/M2

Electrical Measurement Module Typical Wiring 3
