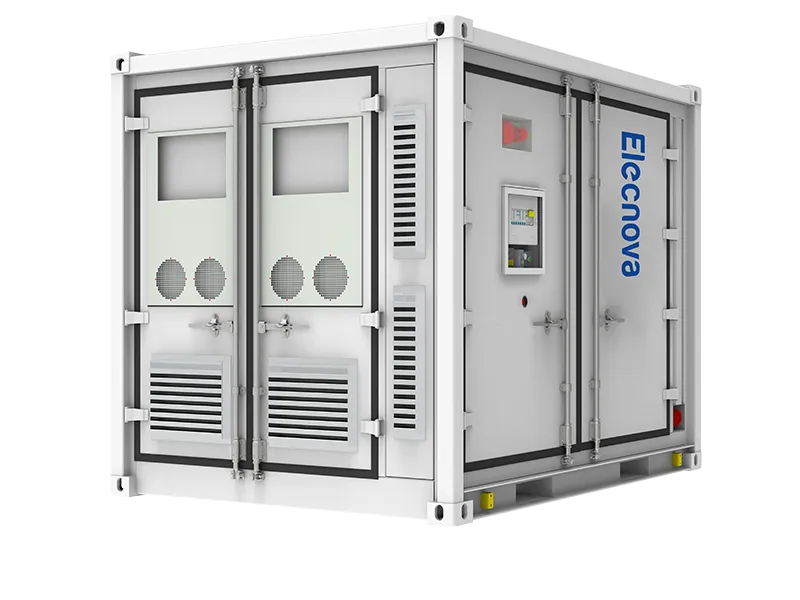

All-in-one Liquid-cooled ESS Container ECO-E10FT1044LP-2-N/S

Name: All-in-one Liquid-cooled ESS Container ECO-E10FT1044LP-2-N/S
Brand: JIANGSU ELECNOVA ELECTRIC CO., LTD.

ECO-E10FT1044LP-2-N/S is a highly integrated, standard 10-foot containerized energy storage system designed for commercial and industrial applications, with a rated AC output voltage of 400V. This system is capable of on/off-grid switch functionality, and the STS and <20ms seamless switching feature is available as an optional upgrade, providing strong off-grid load capability. It is equipped with dedicated interfaces for diesel generator connection and PV inverter connection, enabling multiple power sources to supply the system. This flexible design allows the system to adapt to various application scenarios and diverse user requirements.

Feature

Specifications

All-in-One 10-ft Container

Highly integrated 3S system, cooling system, and fire protection system, delivering greater capacity within a smaller footprint.

String-Based Solution

Each battery cluster is independently managed, enhancing system reliability and stability.

On/off-grid Switching

<20ms seamless on/off-grid switching function is an available optional feature, for special requirement.

Multiple Power Source Options

Equipped with reserved interfaces for diesel generator and PV inverter, the system supports multiple power sources, making it suitable for a wide range of application scenarios.

DC Side	ECO-E10FT1044LP-2-N	ECO-E10FT1044LP-2-S
Cell Type	LFP / 314 Ah	LFP / 314 Ah
Pack Configuration	52.2 kWh / IP52S	52.2 kWh / IP52S
System Configuration	1044 kWh / 4P260S	1044 kWh / 4P260S
Rated DC Voltage	832 V	832 V
DC Voltage Range	728 ~ 936 V	728 ~ 936 V
Max. Charge/Discharge Rate	0.5 P	0.5 P
Max. Depth of Discharge	100% (25 ± 2 °C)	100% (25 ± 2 °C)
Power Source
Rated ESS Power	500 kW	500 kW
Rated AC Voltage	400 V	400 V
AC Voltage Range	±15%	±15%
Grid Type	3W+N+PE	3W+N+PE
Rated Frequency	50 Hz / 60 Hz	50 Hz / 60 Hz
Rated STS Power	/	1000kW
On/Off-grid Switching	/	<20ms
Power Factor	0.99 (1 leading - 1 lagging)	0.99 (1 leading - 1 lagging)
THDi	≤3%	≤3%
DC Ratio	<0.5% Ipn	<0.5% Ipn
Max. PV Inverter Input Current	/	800 A
Max. Diesel Generator Input Current	/	800 A
AC Side
Max. Backup Load Port Current	800 A	800 A
Max. Backup Load Power*	350kW (70% of Rated Output Power)	350kW (70% of Rated Output Power)
General
Max. Round Trip Efficiency	88%	87%
Cycle Life	≥ 8,000 cycles	≥ 8,000 cycles
Communication	Modbus TCP	Modbus TCP
Fire Suppression System	Aerosol system+Water spray system	Aerosol system+Water spray system
Ingress Rating	IP55	IP55
Cooling	Liquid cooling+Forced air cooling	Liquid cooling+Forced air cooling
Operating Temperature	-25°C~55°C (Derating after 45°C)	-25°C~55°C (Derating after 45°C)
Anticorrosion Rating	C4 (C5 optional)	C4 (C5 optional)
Humidity	0~95% RH (non-condensing)	0~95% RH (non-condensing)
Noise	≤ 80 dB	≤ 80 dB
Altitude	3000m (Derating above 2000m)	3000m (Derating above 2000m)
Dimensions (WDH)	299124382591 mm	299124382591 mm
Weight	14 t	14 t
Safety/EMC	UN3536, IEC62477-1, IEC62619, IEC63056, IEC61000-6-2/4, UL9540A	UN3536, IEC62477-1, IEC62619, IEC63056, IEC61000-6-2/4, UL9540A
Grid code	EN50549-1/-10, EN50549-2/-10, G99, VDE4105, NRS097, C10/11	EN50549-1/-10, EN50549-2/-10, G99, VDE4105, NRS097, C10/11
