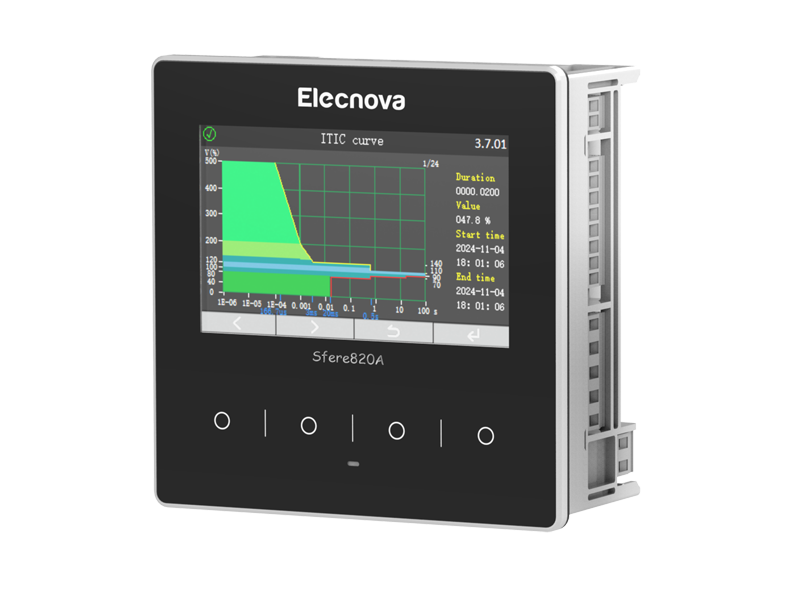

Sfere820A Class A Power Quality Analzyer

Sfere820A Class A Power Quality Analzyer

Introduction

Sfere820A can realize the full power parameter measurement of power load, and its perfect power metering and power quality analysis functions can be applied to all kinds of power monitoring systems. Sfere820A is a 144*144 panel mounted power quality analyzer complied with IEC61000-4-30 standadards. By use an external external module FM24 to achieve the webserver function.


Sfere820A Class A Power Quality Analzyer Feature
Feature
V/A/P/Q/PF/F/±kWh/±kvarh
Energy metering (0.2S)
Event log and waveform record
ITIC/SEMI F47 curves
IEC 61000-4-30 CL.A
EN50160 Report

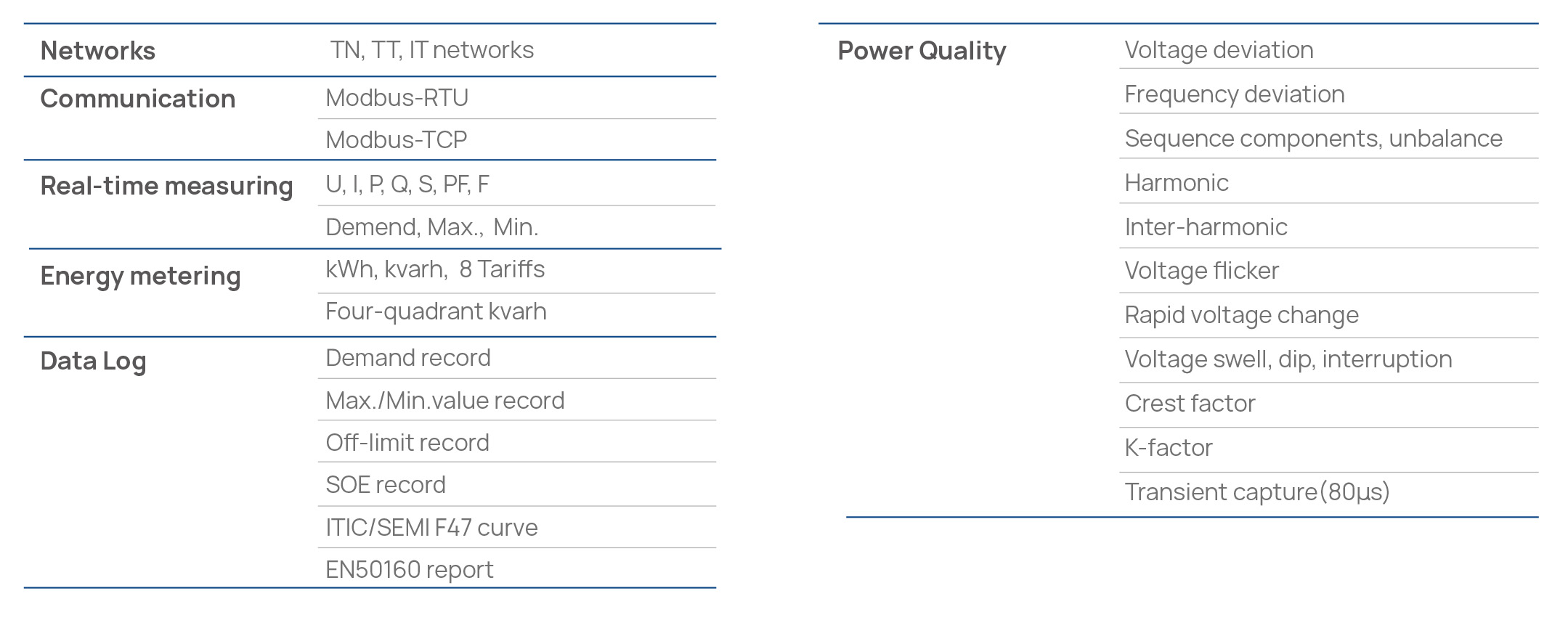

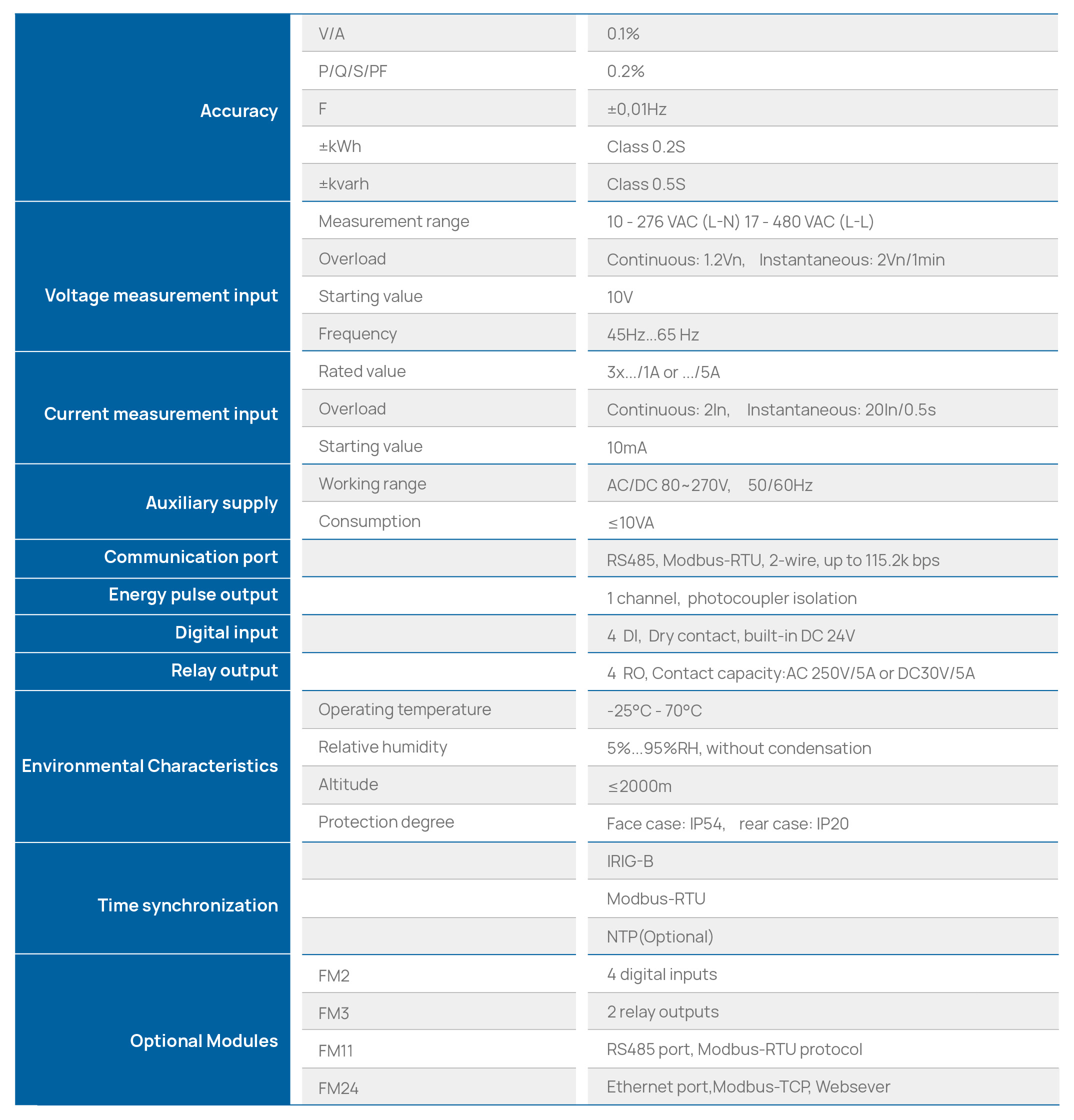

Technical Specification

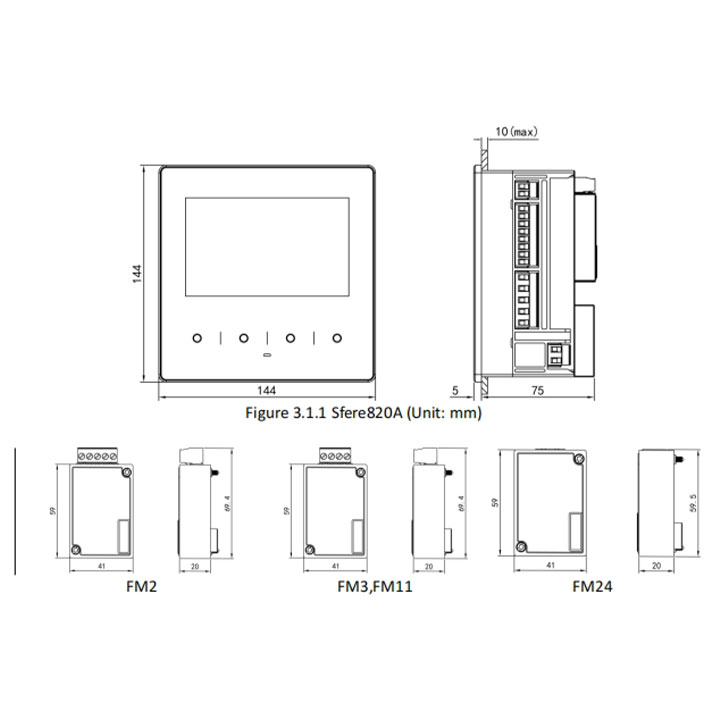

Dimension

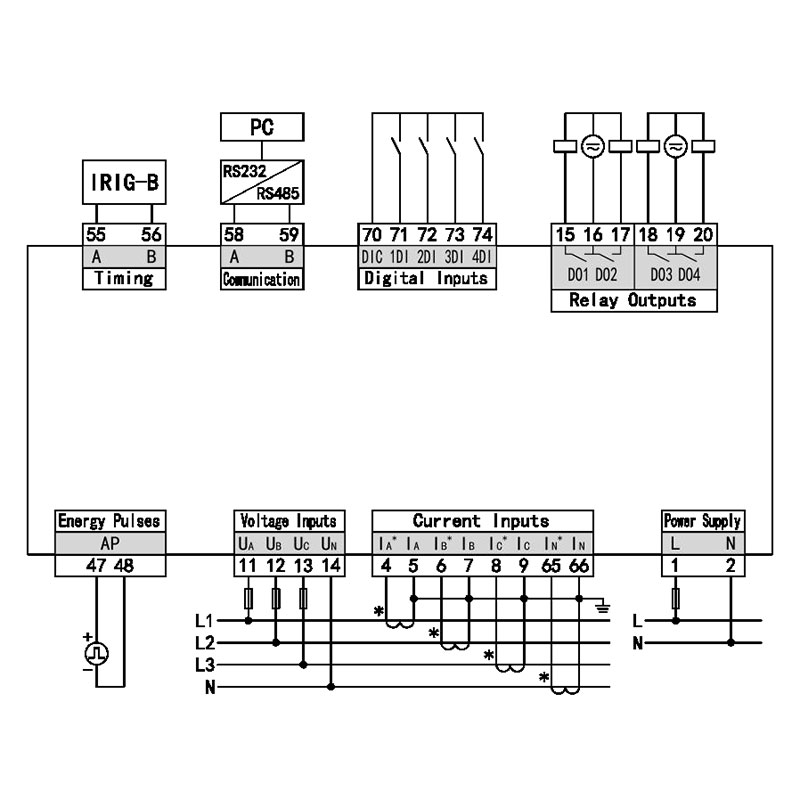

Typical Wiring
Models





Contact Info
