BCM100 Precision Distribution Monitoring Unit

2021-06-30

At present, due to the increasing dependence of various industries in China on information data processing, the scale of data center construction has grown rapidly. A data center is a place that gathers a large number of servers, UPS, precision air conditioning and other electrical equipment. Equipping a power data monitoring system with a high power consumption in the data center can help achieve better refined management.


At present, due to the increasing dependence of various industries in China on information data processing, the scale of data center construction has grown rapidly. A data center is a place that gathers a large number of servers, UPS, precision air conditioning and other electrical equipment. Equipping a power data monitoring system with a high power consumption in the data center can help achieve better refined management.

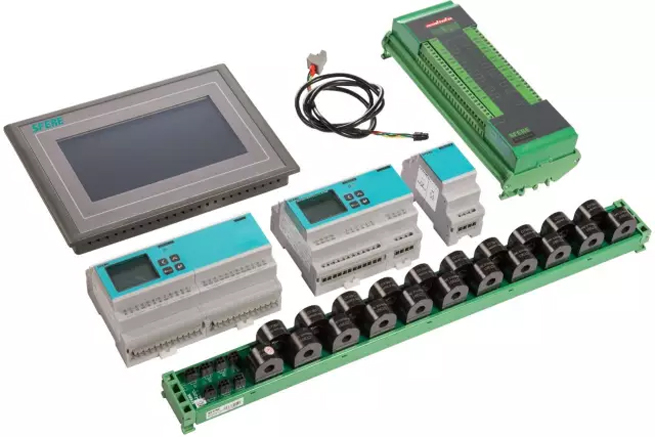

BCM100 Precision Distribution Monitoring Unit


Product Features


Modular design, with relatively independent input monitoring module, output monitoring module, CT module, switch quantity monitoring module, and display unit

Adopting a 7-inch human-machine interface, convenient interaction and operation, providing Ethernet interface to connect with the superior monitoring system

Provide 21 CT modules and independent CT to meet the requirements of different output circuits

Provide measurement of harmonic parameters for incoming and outgoing circuits

Provide monitoring of leakage and temperature parameters in the circuit

Provide relay output to achieve graded alarm function for important parameters

The switch status of the output circuit can be directly taken from the switch outlet without the need for additional auxiliary contacts

Adopting high-precision current transformers and energy metering chips to ensure measurement accuracy

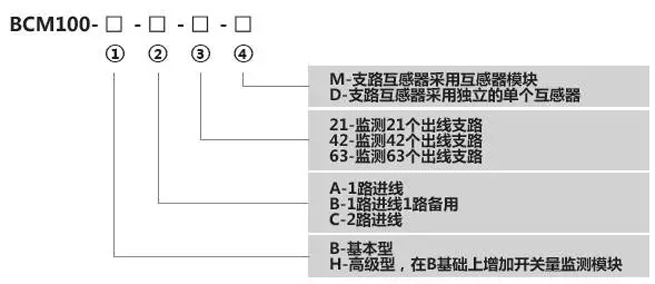

Product Selection


BCM100 Precision Distribution Monitoring Unit

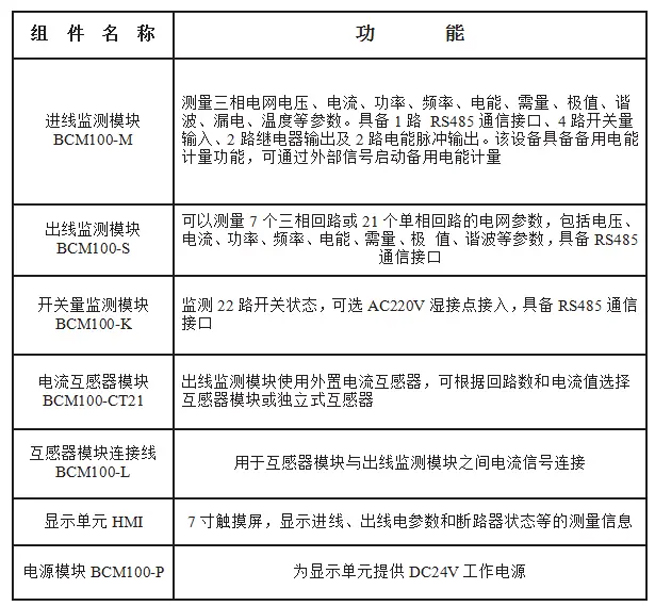

Product Components


BCM100 Precision Distribution Monitoring Unit

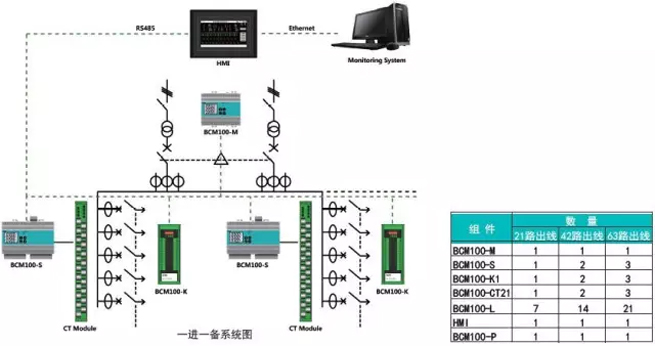

Typical System Application Diagram


BCM100 Precision Distribution Monitoring Unit
