Solution for Intelligent Equipment Electricity Monitoring System

2021-07-01

At present, the performance of power monitoring systems and equipment in factories and companies is getting better and stronger, with increasingly complex structures and higher levels of automation. At the same time, factories have increasingly urgent requirements for the safety and stability of equipment. If status monitoring, fault diagnosis, and health management can be carried out on equipment, it will greatly ensure the safe and reliable operation of the equipment. The goal of intelligent equipment detection is to monitor and extract the working status information of equipment, and then analyze and judge the collected information to identify equipment status, predict equipment faults, and take measures early to reduce losses.


With years of rich experience and technical strength in the field of electrical monitoring, Jiangsu Elecnova Electric has launched the Elecnova Intelligent Equipment Electricity Monitoring System to meet the needs of equipment enterprises for safe operation, cloud based equipment, cloud based business, internal resource optimization, and dynamic resource configuration. The system is designed to build a monitoring platform for intelligent equipment enterprises, migrate traditional business applications to the platform, pool hardware resources and share them with equipment customers to improve service efficiency and capabilities.


Solution for Intelligent Equipment Electricity Monitoring System


Function Introduction


The intelligent equipment electricity monitoring system is an information system that monitors the electrical parameters of the equipment's operating status. It is used to receive information transmitted by the on-site monitoring system, achieve the collection, alarm management, statistical analysis, etc. of on-site data, remotely and in real-time grasp the equipment's operating status, timely report abnormal situations such as equipment not being turned on, abnormal shutdown, deceleration, idling, frequency reduction, etc., and notify relevant personnel.


Solution for Intelligent Equipment Electricity Monitoring System

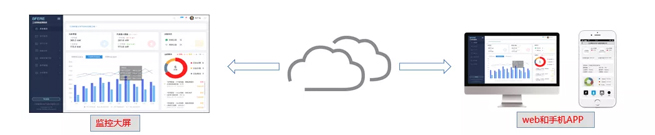

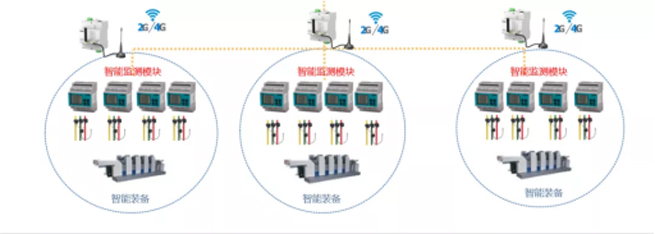

Schematic diagram of the composition and structure of the electricity monitoring system


Monitoring system

Monitor the electrical parameters (current, voltage, power, power factor, power quality, etc.) of the overall operation status of smart devices. Collection and transmission



Collect data from the electrical parameter monitoring subsystem and transmit the data to the cloud monitoring platform.

Communicate with the electrical parameter monitoring subsystem to achieve functions such as information collection, data storage, data analysis and judgment, and event alarm. It can be realized through cloud computing, mobile Internet and other technologies. Cheng Monitoring



The electricity monitoring system provides user access functions such as web browsers and mobile apps, provides alarm methods such as SMS and apps, and provides the function of processing alarm information.


Composition of on-site monitoring system


Monitoring module


Solution for Intelligent Equipment Electricity Monitoring System


PD194Z-E14 monitors 4-way three-phase current, voltage, active/reactive power, power factor, energy metering, etc., with RS485 communication.


Current transformer


Solution for Intelligent Equipment Electricity Monitoring System


Open type current transformers below 600A (flexible coils can be used for high currents).


Communication Gateway


Solution for Intelligent Equipment Electricity Monitoring System

The downlink RS485 communication receives monitoring module signals, and the uplink 2G/4G communication is transmitted to the cloud.


Write at the end


In recent years, with the increasing popularity of intelligence, as an important part of electricity monitoring, intelligent electricity monitoring systems and electricity safety management measures are essential. Through technological progress, changes in industrial organizational forms, and changes in business operations, Sfier will further expand its non distribution market business.



Szfel Electric focuses on comprehensive electrical applications and aims to become a top expert in electrical application solutions. Our vision is to better serve China's intelligent factories and fulfill our corporate social responsibility.
